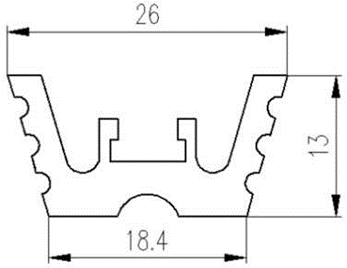

The Enviko 8311 Piezoelectric Traffic Sensor is a high-performance device designed for collecting traffic data. Whether installed permanently or temporarily, the Enviko 8311 can be flexibly installed on or below the road, providing accurate traffic information. Its unique structure and flat design allow it to conform to the road profile, reduce road noise, and improve the accuracy and reliability of data collection.

Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion

How piezoelectric load cells work

The Enviko 8311 sensor is divided into two types:

  • Class I Sensor (Weigh In Motion, WIM): Used for dynamic weighing applications, with an output consistency of ±7%, suitable for applications requiring high-precision weight data.
  • Class II Sensor (Classification): Used for vehicle counting, classification, and speed detection, with an output consistency of ±20%. It is more economical and suitable for high-traffic management applications.



Application Fields

  1. Road Traffic Monitoring:
    • Vehicle counting and classification.
    • Traffic flow monitoring, providing reliable traffic data support.
  2. Highway Tolling:
    • Dynamic weight-based tolling, ensuring fair and accurate toll collection.
    • Vehicle classification tolling, enhancing toll collection efficiency.
  3. Traffic Law Enforcement:
    • Red-light violation monitoring and speed detection, helping to maintain traffic order.
  4. Intelligent Transportation Systems:
    • Integration with traffic management systems, promoting the development of intelligent transportation.
    • Traffic data collection and analysis, providing a basis for traffic planning.



Technical parameters



Model No.

CET8311

Section size

～3×7mm2

Length

can be customized

Piezoelectric coefficient

≥20pC/N Nominal value

Insulation resistance

＞500MΩ

Equivalent capacitance

～6.5nF

Working temperature

-25℃～60℃

Interface

Q9



Mounting bracket

Attach the mounting bracket with the sensor (Nylon material not recycled). 1 pcs bracket each 15 cm



Installation Methods and Steps

  1. Installation Preparation:
    • Choose a suitable road section, ensuring the long-term stability of the weighing equipment and the rigidity of the road foundation.
  2. Slot Cutting:
    3. Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion

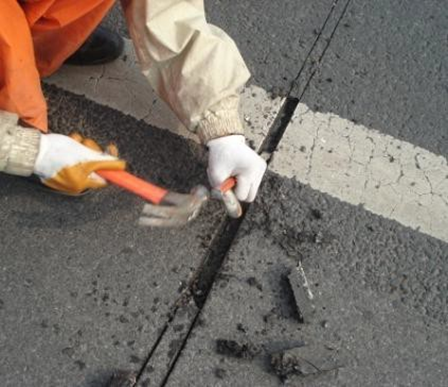

    • Use a cutting machine to cut slots at designated positions, ensuring precise control of the slot dimensions.

1)   Cross Section dimension

Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion



A=20mm(±3mm)mm； B=30(±3mm)mm

2)   Groove’s length

The length of the slot should be more than 100 to 200 mm of the total length of the sensor. Total length of sensor:

    • i=L+165mm, L is for brass length (See the label).
  1. Cleaning and Drying:
    • Clean the installation slot with a high-pressure cleaner, ensuring the slot is free of debris.
    • Enviko 8311 Piezoelectric Traffic Sensor in Weigh in MotionEnviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion

  2. Pre-installation Testing:
    • Test the capacitance and resistance of the sensor, ensuring they are within specification.
  3. Fixing Installation Brackets:
    • Place the sensor and installation brackets into the slot, installing a bracket every 15 cm.
    • Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion
  4. Grouting:
    • Mix the grouting material according to the specified ratio and fill the slot evenly, ensuring the grouting surface is slightly higher than the road surface.
    • Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion
  5. Surface Grinding:
    • After the grouting has cured, grind the surface with an angle grinder to make it smooth.
    • Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion
  6. Site Cleaning and Post-installation Testing:
    • Clean the site, test the capacitance and resistance of the sensor again, and perform pre-load testing to ensure the sensor is working properly.
    • Enviko 8311 Piezoelectric Traffic Sensor in Weigh in Motion

 The Enviko 8311 sensor, with its outstanding performance, reliable accuracy, simple installation, and versatile applications, is an ideal choice for traffic monitoring and management systems. Its unique design and high-quality materials ensure long-term stable performance. Whether for dynamic weighing, vehicle classification, or speed detection, the Enviko 8311 sensor provides precise data, supporting the development of intelligent transportation systems. If you are looking for an efficient, reliable, and economical traffic sensor, the Enviko 8311 sensor is undoubtedly your best choice.
