Enviko CET-1230HS LiDAR Detector

Enviko CET-1230HS LiDAR Detector

Enviko CET-1230 LiDAR Detector, vehicle contour , weigh in motion
Revolutionize your traffic management and dynamic weighing systems with the state-of-the-art Enviko CET-1230 LiDAR Detector. Engineered for precision and efficiency, this advanced device is perfect for applications in weigh in motion (WIM) and intelligent transportation systems (ITS). Here's why the Enviko CET-1230 is the ultimate solution for vehicle contour detection.

Enviko CET-1230 LiDAR Detector, vehicle contour , weigh in motion

Key Applications and Benefits

1. Dynamic Weighing and Vehicle Profiling:

  • The Enviko CET-1230 LiDAR Detector excels in dynamic vehicle contour detection, providing real-time data on vehicle length, width, and height without disrupting traffic flow. This makes it indispensable for weigh in motion systems, ensuring accurate measurements of vehicle dimensions and weight while in motion.

2. Traffic Safety and Oversize Management:

  • Road management authorities can effectively monitor and manage oversize and overload vehicles, reducing the risk of accidents caused by vehicles exceeding legal size limits. The Enviko CET-1230 ensures that every vehicle on the road complies with safety standards, thereby enhancing overall traffic safety.

3. Versatile Applications:

  • This detector is designed for both indoor and outdoor environments, making it suitable for a variety of settings including highways, ports, railways, and industrial facilities. Its robust design ensures reliable performance under harsh conditions, maintaining accuracy and efficiency.

Enviko CET-1230 LiDAR Detector, vehicle contour , weigh in motion

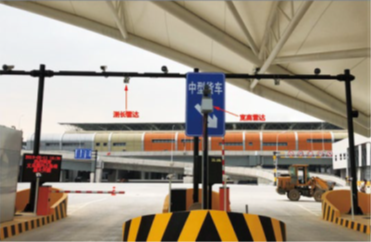

Logistics management
Enviko CET-1230 LiDAR Detector, vehicle contour , weigh in motion

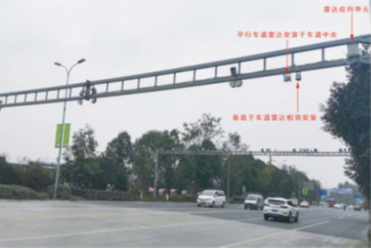

 Traffic monitoring
Enviko CET-1230 LiDAR Detector, vehicle contour , weigh in motion
Oversize and overload management

 Exceptional Performance and Features

1. Unmatched Measurement Accuracy:

  • The Enviko CET-1230 offers remarkable measurement accuracy for vehicle dimensions, with an error margin as low as ±1% or ±20 mm for lengths up to 33,000 mm, widths up to 4,500 mm, and heights up to 5,500 mm. This precision is crucial for applications where exact measurements are necessary.

2. High-Speed Data Processing:

  • Operating at a measuring frequency of 144KHz and a scanning frequency of 50/100Hz, the CET-1230 processes data swiftly and efficiently. It supports real-time transmission of measurement data via TCP/IP protocol, compatible with common highway JSON protocols and customizable output options.

3. Comprehensive Data Output:

  • The device provides detailed point cloud data and measurement results, which can be used for historical queries and status monitoring. The accompanying CMT software facilitates easy installation, debugging, and configuration of functional parameters.


 Technical Specifications

CET-1230HS

Laser characteristics

Class 1 laser product, Eye safety (IEC 60825-1)

Laser light source

905nm

Measuring frequency

144KHz

Measuring distance

30m@10%、80m@90%

Scanning frequency

50/100Hz

Detection angle

270°

Angular resolution

0.125/0.25°

Measuring accuracy

±30mm

Machine power consumption

Typical ≤15W; heating ≤55W; heating power supply DC24V

Working voltage

DC24V±4V

Starting current

2A@DC24V

Interface type

Power supply: 5-core aviation socket <working, heating>; Network: 4-core aviation socket <network>; 01: 8 letters, 232RS485, synchronization> 102:8 <remote control>

Number of interfaces

Power supply: 1 working channel/1 heating channel, network: 1 channel, remote signaling (YX): 2/2 channels, remote control (YK): 3/2 channels, synchronization: 1 channel, RS232/RS485/CAN interface: 1 channel (optional)

Environmental parameters

Wide temperature version -55°C~+70°C; non-wide temperature version -20C+55°C

Overall dimensions

Rear outlet: 130mmx102mmx157mm; Bottom outlet: 108x102x180mm

Light resistance level

80000lux

Protection level

IP67


weigh in motion

Enviko Technology Co.,Ltd

E-mail: info@enviko-tech.com

https://www.envikotech.com

Chengdu Office: No. 2004, Unit 1, Building 2, No. 158, Tianfu 4th Street, Hi-tech Zone, Chengdu

Hong Kong Office: 8F, Cheung Wang Building, 251 San Wui Street, Hong Kong

Factory: Building 36, Jinjialin Industrial Zone, Mianyang City, Sichuan Province
