Enviko Weigh-In-Motion solution cabinet

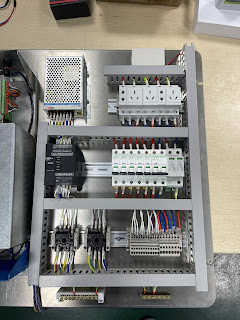

The Enviko Weigh-In-Motion solution cabinet being assembled integrates the charge amplifier, vehicle detector, power switch, and data acquisition system. It supports 32 channels of quartz traffic sensors. The high-precision data logger uses edge algorithms. The overall system is efficient and tidy, with a modular design that makes installation and later maintenance simple and efficient.







Whatsapp: +86 13551092658
E-mail:info@enviko-tech.com
web: www.envikotech.com
www.enviko-tech.com
